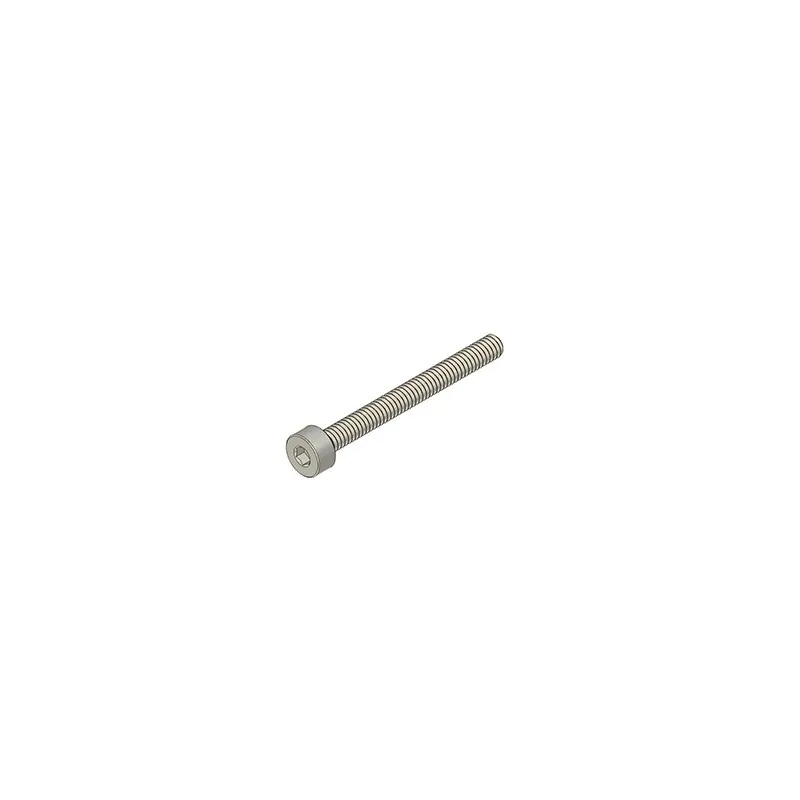

DIN 912 M2x20mm Socket Head Cap Screw - A2 Stainless Steel (304)

The DIN 912 M2 socket head cap screw is a miniature fastener designed for high-precision applications where space constraints, corrosion resistance, and reliable torque transmission are critical. Manufactured from A2 stainless steel (AISI 304), this screw is non-magnetic, corrosion-resistant, and suitable for indoor and semi-corrosive environments. The clean cylindrical head profile and internal hex drive (Allen) allow for high tightening force without stripping or cam-out-ideal for tight-space assemblies.

Technical Specs:

• Standard: DIN 912 / ISO 4762 - metric socket head cap screw
• Thread Size: M2 × 0.4 mm pitch - fine precision thread
• Head Type: Cylindrical head with hex socket (Allen drive, 1.5 mm)
• Material: A2 stainless steel (AISI 304) - corrosion resistant and non-magnetic
• Finish: Natural, passivated stainless steel
• Tensile Strength: Approx. 500-700 MPa
• Tight tolerances - ideal for precision mechanical assemblies
• RoHS compliant - suitable for electronics and environmentally regulated applications
• Manufactured in the EU - industrial-grade quality assurance
• Available in multiple lengths: 3mm / 4mm / 5mm / 6mm / 8mm / 10mm / 12mm / 16mm / 20mm

Key Features:

• Excellent corrosion resistance in humid and mildly aggressive environments
• Ideal for lightweight assemblies with low to moderate loads
• Precision-machined for tight tolerances and clean fit
• Aesthetic, flush-fitting head for visible applications

Application Areas:

• 3D printers & CNC builds (motor mounts, frame brackets)
• Consumer electronics (PCB fixing, Raspberry Pi or Arduino cases)
• Precision engineering & automation (small actuators, sensors)
• Medical & laboratory equipment
• Model building (drones, RC vehicles, robotics kits)
• Optics and instrumentation
