DIN 912 M3x35mm (A4-70)
Specifications:
- Product Code: 912-M3X35-A4
- Material: A4-70 Marine Stainless Steel (AISI 316)
- DIN Standard: DIN 912
- ISO Standard: ISO 4762
Dimensions:

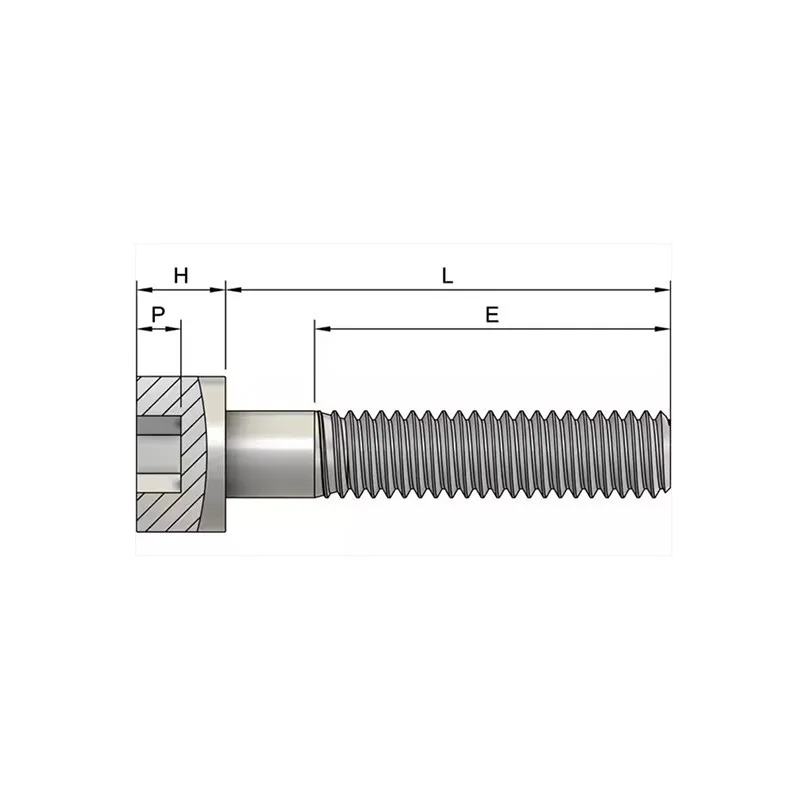

- Length (L): 35 mm
- Thread Size: M3 (Ø3.0 mm)
- Thread Pitch: 0.50 mm

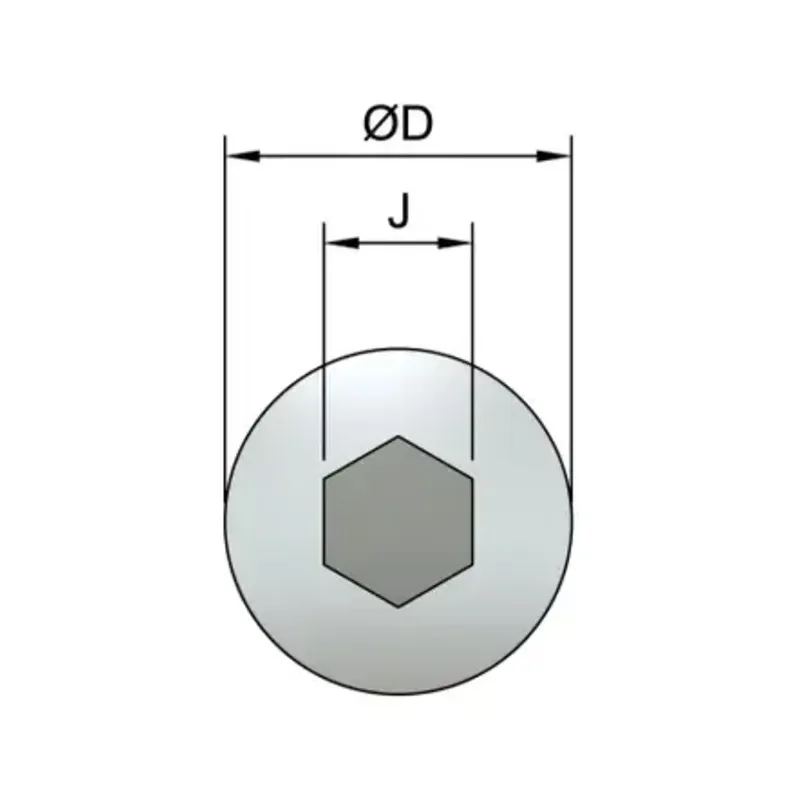

- Head Diameter (D): 5.5 mm
- Head Height (H): 3.0 mm
- Socket Size (J): 2.5 mm (Allen key)
- Hexagon Depth (P): 1.3 mm
