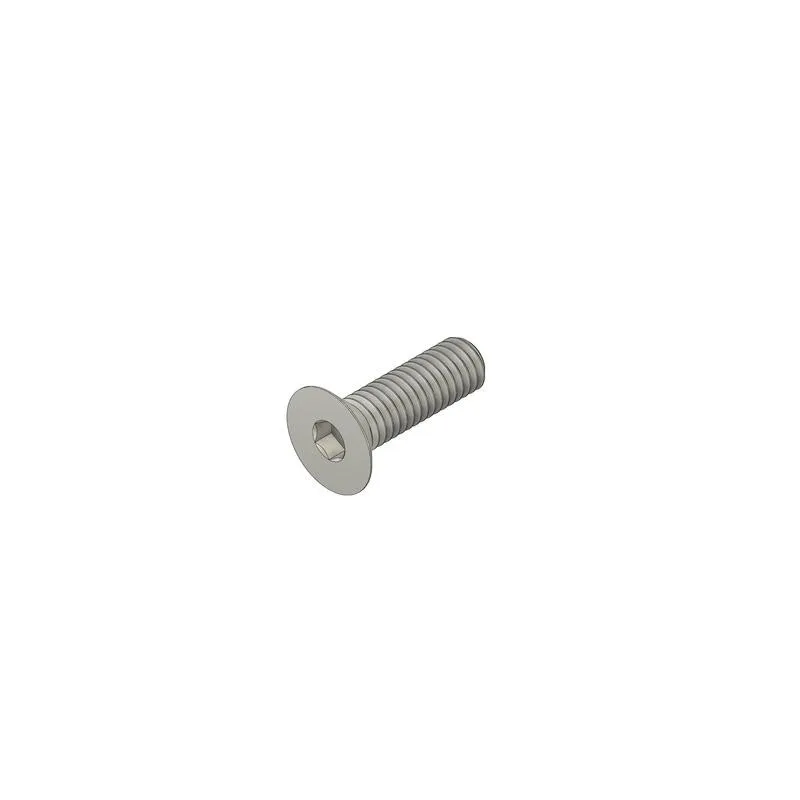

ISO 10642 M3x10mm (A4-70)
Specifications:
- Product Code: 10642-M3X10-A4
- Material: A4-70 Marine Stainless Steel (AISI 316)
- Standard: ISO 10642 (equivalent to DIN 7991)
Dimensions:
- Length (L): 10 mm
- Thread Size (d): M3 (Ø3.0 mm)
- Thread Pitch (P): 0.50 mm
- Head Diameter (dk): 6.0 mm
- Head Height (k): 1.7 mm
- Countersunk Angle (α): 90°
- Hex Socket Size (s): 2.0 mm (Allen key)
For detailed tolerances, see the technical datasheet.
