Tappex® Microbarb® M3

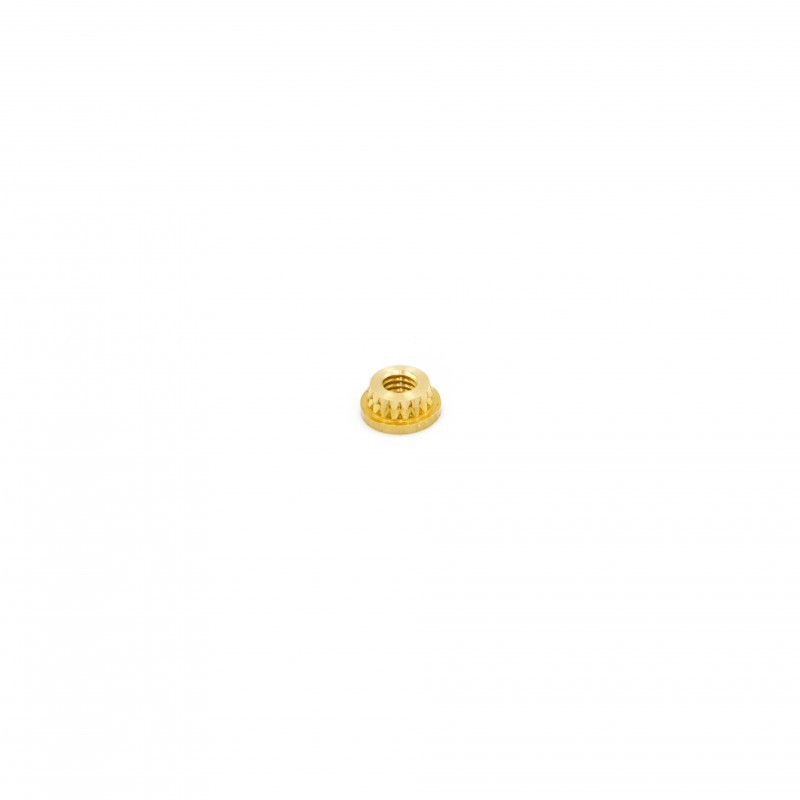

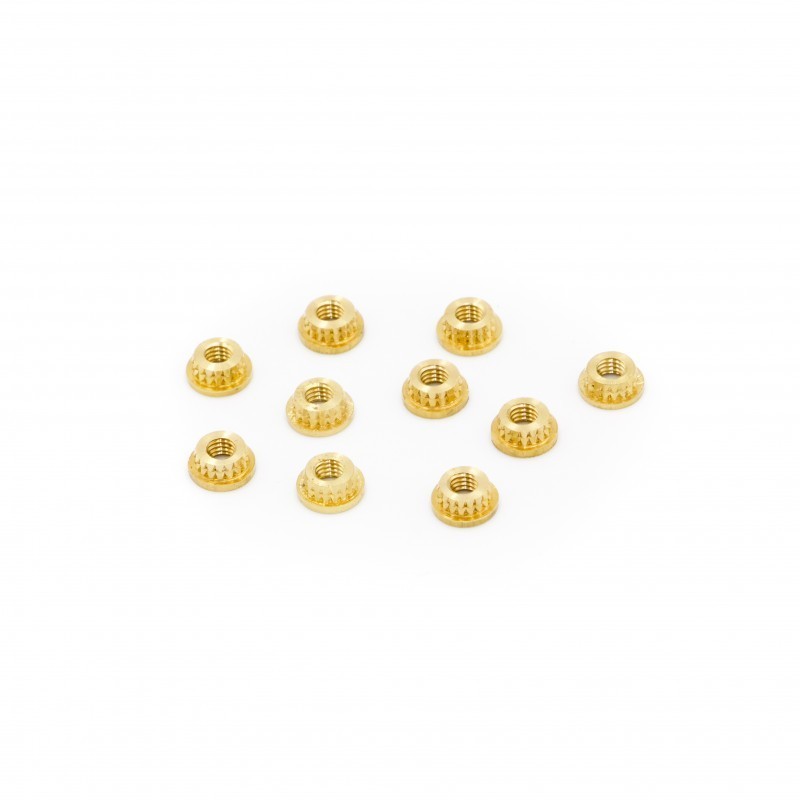

Tappex® Microbarb® 0006M3 brass insert (1pcs)
Specification:
· Material: Brass (BS EN 12164 CW 614N)
· Part No.: 0006M3
· Thread Size: M3
· Pitch (internal): 0.50

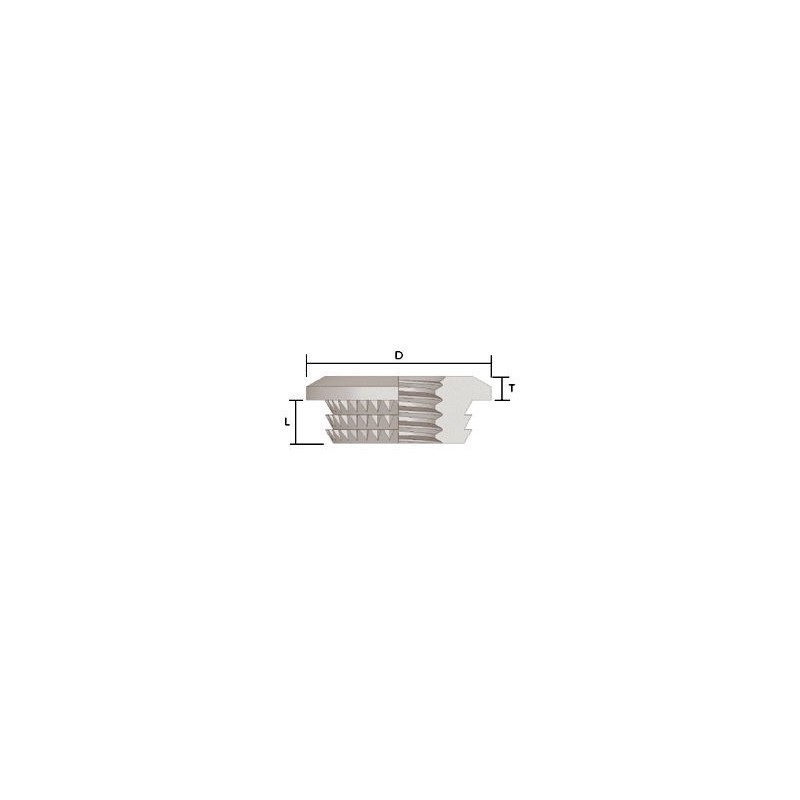

Insert Design:
· Barbs (no. of rows): 2.00mm
· Head Diameter D: 6.10mm
· Head Thickness T: 0.85mm
· Length L: 1.85mm

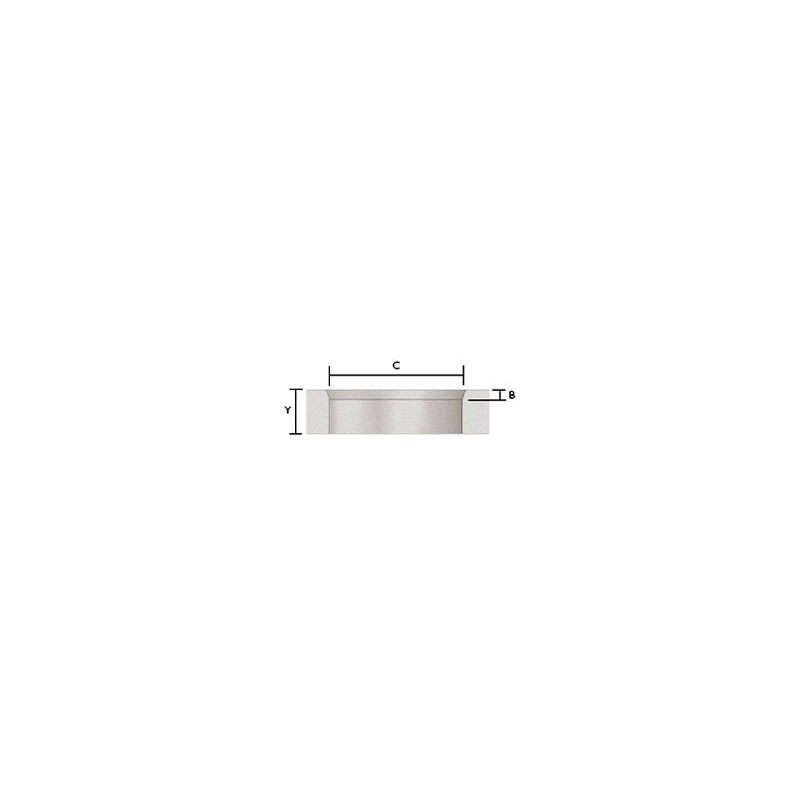

Hole Design:
· Hole Depth Y: 2.00mm
· Hole Diameter C: 4.66mm
