Tappex® Multisert® M3

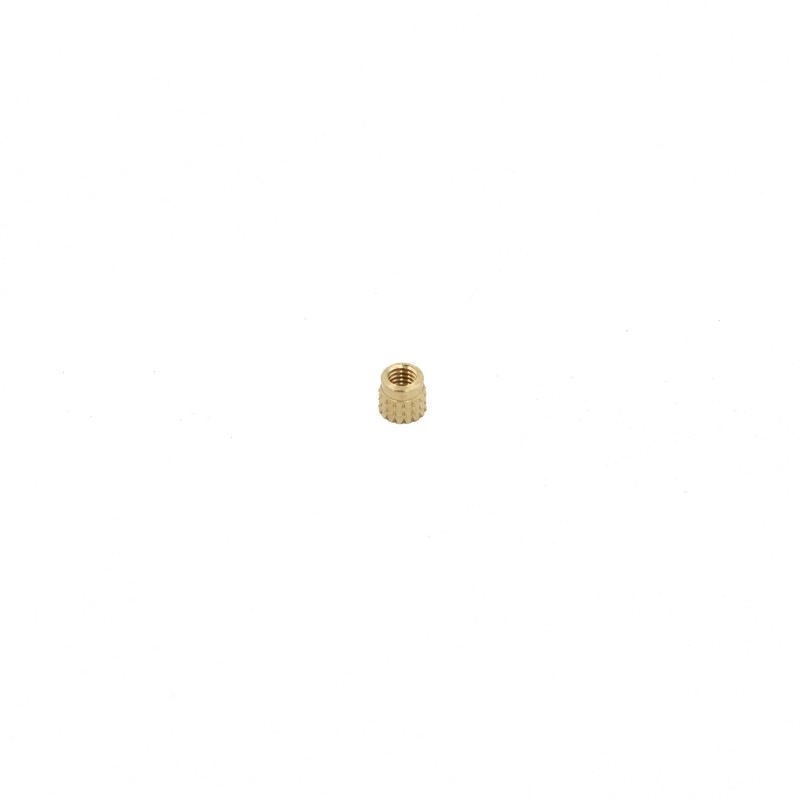

Tappex® Multisert® UNHEADED 002M3 brass insert (1pcs)
Specification:
· Material: Brass (BS EN 12164 CW 614N)
· Part No.: 002M3
· Thread Size: M3
· Pitch (internal): 0.50

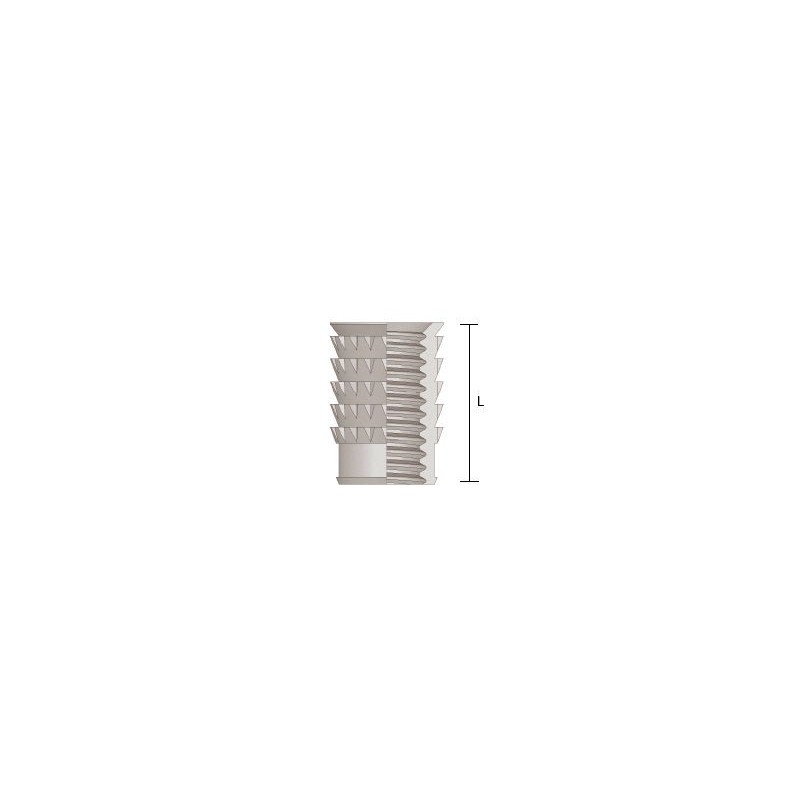

Insert Design:
· Length L: 4.10mm

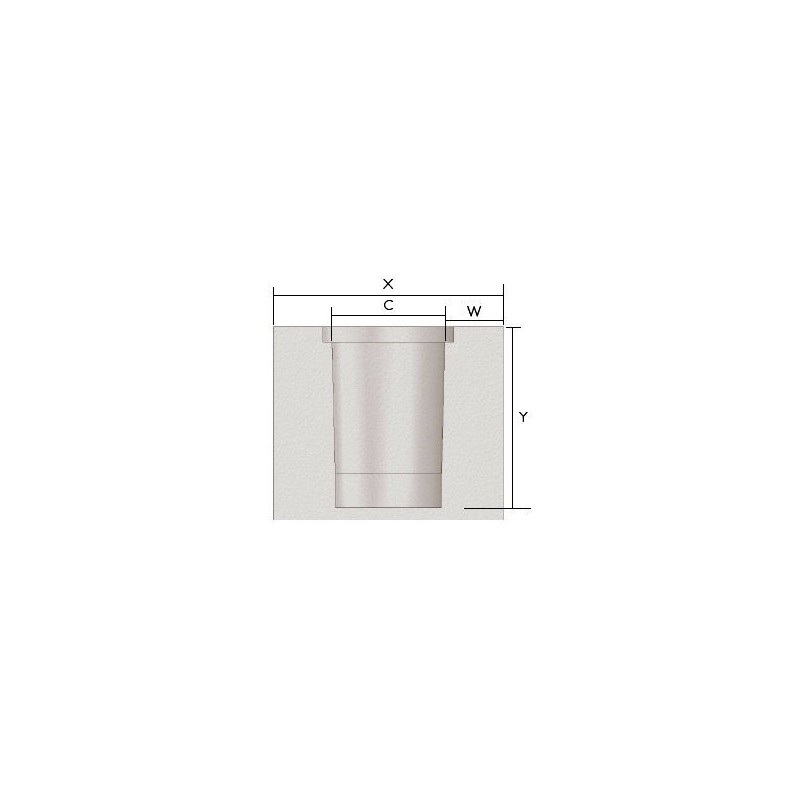

Hole Design:
· Boss Diameter X: 7.40mm
· Hole Depth Y: 4.20mm
· Hole Diameter C: 3.70mm - 4.00mm
· Wall Thickness W: 1.70mm
